SI 300 Fuel Hose

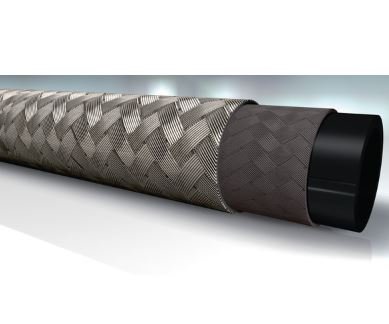

Braided Fuel Hose

Specifications
Area of ​​Use Low pressure hose for fuel lines Standard DIN 73379 Inner Layer Oil resistant synthetic Rubber Reinforcement Coat fabric knit liner and galvanized steel wire knit liner Outer Layer No Color metallic

Temperature min. -35 ° C
Temperature max. 80 ° C
Fluids Otto fuels
Diesel
Unprocessed oil
Grease oil.

Product
Name DN * Inch Size Inner diameter nom. Outer diameter nom. Unit Working pressure Control pressure burst pressure Bending radius min. Coil length only perspool (mm) (mm) (bar) (bar) (bar) (mm) (m)
SI 304 4 3/16 "3 5.5 11.5 Reel 30 40 60 40 20 ✔
SI 306 6 1/4 "4 7.5 13.5 Reel 30 40 60 50 20 ✔
SI 308 8 5/16 "5 9 16 Reel 25 35 45 60 20 ✔
SI 310 10 3/8 "6 11.5 18.5 Reel 25 35 45 80 20 ✔
SI 313 12 1/2 "8 15 23 Reel 25 35 45 80 20 ✔
SI 316 16 5/8 "10 17.5 26 Reel 25 35 45 120 20 ✔
DN * = Nominal diameter, nominal width
Despite rigorous control, we cannot completely prevent errors and take no responsibility for the information available.
