Choosing Hydraulic Hose and Heads is Now Much Easier
Choosing the right hose and nozzle combination for a hydraulic system is an often overlooked and underrated task. Choosing the right combination is of great importance in terms of operator safety as well as overall functionality and service life of the system.
Whether you're a design engineer comparing technical requirements to international standards, or a purchasing manager who determines needs based on industry practice and compliance, determining a hose assembly can be a tedious task.
For this reason, Parker; It has developed a classification system unique in the industry to facilitate the selection of the right hose and nozzle combination according to the needs of its customers.
First class customer service

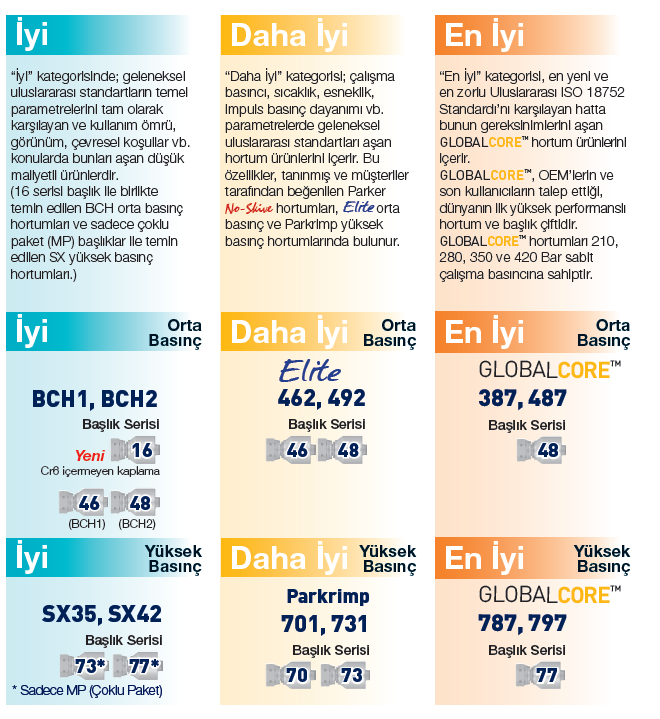

We have eliminated all the troubles in the selection phase. The new hose assembly classification system allows customers to choose the best solution in each category, adhering to quality standards and tailored to their individual application needs. It also clearly shows the separation of hose assemblies with medium to high pressure ratings. To make this even easier, we've added the visual identity of the hose and nozzle combination to the hose basics.
Choosing the Best Hydraulic Hose
Included in this category are our renowned, most advanced GlobalCore hose product line, and our 48 and 77 nozzle series. GlobalCore is the first high performance hose and nozzle pair in the world with a constant working pressure of 210 or 280 Bar (medium pressure class) and a high pressure class of 350 or 420 Bar. These products even exceed the requirements of ISO 18752, the most stringent international standard.
GlobalCore hoses also feature:
50% smaller bend radius
30% more flexible (twisting strength)
Up to 20% lighter
Up to 25% smaller size
4 times higher impulse resistance and lifetime
Up to 25% higher operating temperature
Better Hydraulic Hose Selection
This category includes a series of 46 and 48 heads and Elite No-Skive braided hoses. Also covers high pressure Parkrimp spiral hoses combined with the 70 and 73 head series. Ideal for maintenance, repair and refurbishment (MRO) applications and original equipment manufacturers (OEM) use, these products; It exceeds the requirements of traditional international standards in terms of operating pressure, temperature, flexibility and impulse compressive strength as well as basic parameters. EN857 1SC / 2SC, ISO 11237, ISO 12151, ISO 3862 ..
Good Selection of Hydraulic Hose
This category consists of BCH braided hoses combined with series of 16, 46 and 48 heads and SX Spiral Hoses combined with series of 73 and 77 heads. BCH and SX are newly developed high performance, economical hoses. These products meet the main parameters of traditional international standards and exceed these standards in lifetime, appearance and environmental specifications. EN857 1SC / 2SC, ISO 11237, ISO 12151, ISO 3862.
